PRODUCTS     >     access-control-systems     >     gem-locks-n-strikes     >     em-lock

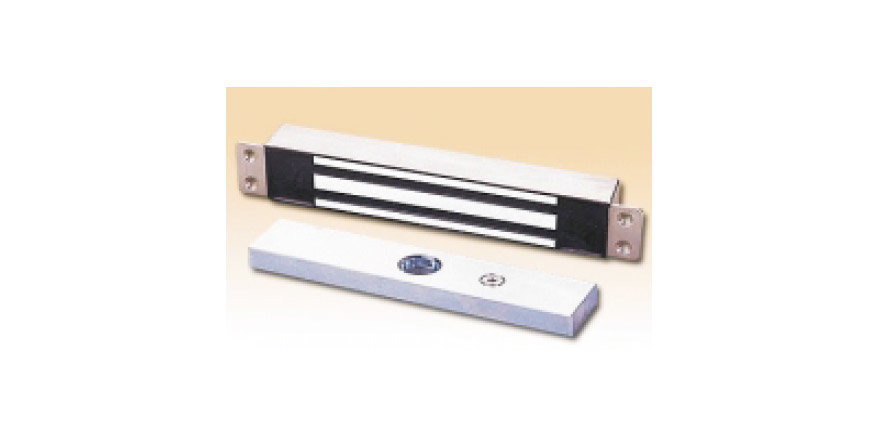

10010st

  • Voltage Tolerance: 15%
  • Current Draw: 250mA@12Vdc at temperature 20
  • Magnetic bond sensor monitor output (10020ST)
  • (SPDT rated 0.25A@12V DC), remotely monitors the door lock or unlock status. (N.C. Output--Door opened; N.O. Output--Door closed)
  • Operating Temperature: -10~55 14~131
  • Humidity: 0~95% non-condensing.
  • Lock's surface Temperature (when the power is on): current temperature +20
  • Holding Force: 1200 lbs 545 Kg
  • Dimensions:
    • Magnet:(L) 220, (W) 68, (D) 41 mm
    • Armature Plate:(L) 185, (W) 62, (D) 16 mm
    • Special Finishes for magnet and armature plate: Zinc
    • Epoxy Potting Compound: E87252 (S), UL94V-0
    • Weight Approx. : 5.0 Kg

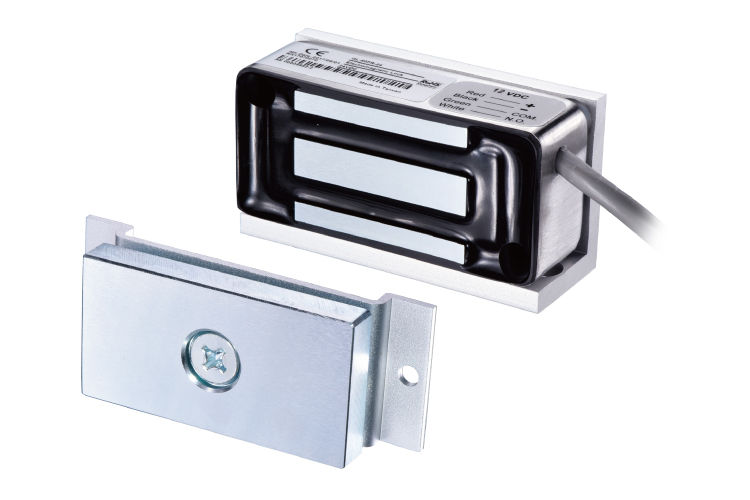

N10001ST Outdoor EM lock

  • Outdoor 600Lbs EM lock
  • Stainless Steel Vandal resistant casing
  • Anti Residual Magnetism
  • 12VDC
  • 218x44x27.5mm
  • ROHS Compliant

GL-80F

  • 80lbs Waterproof lock
  • Side/Top mount
  • Easy installation
